Brand Name : JDI
Model Number : TX48D02VM0BAA
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : TX48D02VM0BAA
Diagonal Size : 19.0"
Panel Type : a-Si TFT-LCD, LCM
Resolution : 1680(RGB)×1050, WSXGA+ 104PPI
Pixel Format : RGB Vertical Stripe
Active Area : 409.5(W)×255.94(H) mm
Used for : Industrial、Medical Imaging
Touch Screen : Without
original 19.0 inch TX48D02VM0BAA 1680*1050 lcd screen for Industrial
TX48D02VM0BAA LCD Panel Product details :
| Brand | JDI |
| Model P/N | TX48D02VM0BAA |
| Diagonal Size | 19.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1680(RGB)×1050, WSXGA+ 104PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 409.5(W)×255.94(H) mm |
| Bezel Opening | 413.9(W)×260.3(H) mm |
| Outline(mm) | 444(W)×300(H)×25(D) |
| Luminance | 300 (Typ.)(cd/m²) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 98% sRGB |
| Mass | 1.90Kgs (Typ.) |
| Refresh Rate | 60Hz |
| Treatment | Antiglare, Hard coating (2H) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Work Mode | IPS-Pro, Normally Black, Transmissive |
| Response | 11/10 (Typ.)(Tr/Td) ms |
| Backlight | 3 strings WLED, With LED Driver |
| Used for | Industrial,Medical Imaging |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit), 30 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 55 °C |
| original 19.0 inch TX48D02VM0BAA 1680*1050 lcd screen for Industrial | |
TX48D02VM0BAA LCD Panel Shipping and Package :

TX48D02VM0BAA LCD Panel FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel TX48D02VM0BAA I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order TX48D02VM0BAA ship?
A: The order are shipped within 1-2 working days after received the payment.
|
|

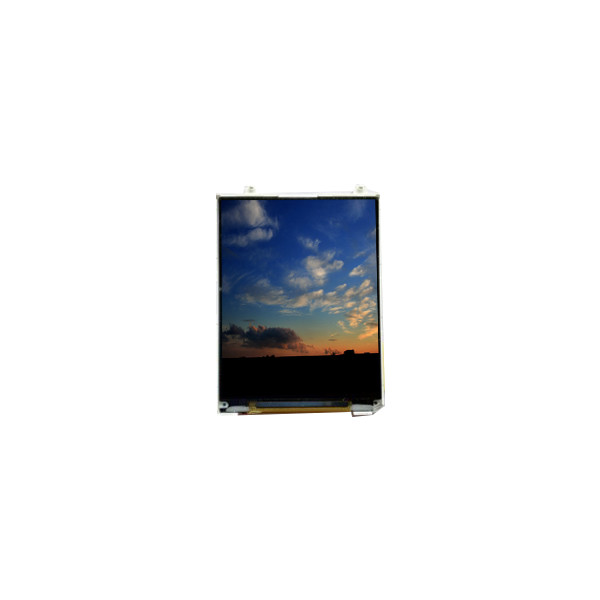

original 19.0 inch TX48D02VM0BAA 1680*1050 lcd screen for Industrial Images |
