Brand Name : Sharp
Model Number : LQ150X1LG51
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : LQ150X1LG51
Diagonal Size : 15.0"
Panel Type : a-Si TFT-LCD, LCM
Resolution : 1024(RGB)×768, XGA 85PPI
Pixel Format : RGB Vertical Stripe
Active Area : 304.128(W)×228.096(H) mm
Application : Industrial
Frequency : 60Hz
Original LQ150X1LG51 1024*768 LCD Screen with Industrial
LQ150X1LG51 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ150X1LG51 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.4(W)×231.3(H) mm |
| Outline Size | 326.5(W)×253.5(H)×12(D) mm |
| Surface | Antiglare, Hard coating |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 4/12 (Typ.)(Tr/Td) |
| Display Colors | 16.2M 64%NTSC |
| Lamp Type | 2 pcsCCFL, 50K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.00Kgs (Typ.) |
| Application | Industrial |
| Signal Interface | LVDS (1 ch, 8-bit), 20 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Original LQ150X1LG51 1024*768 LCD Screen with Industrial | |
LQ150X1LG51 LCD Panel Shipping and Package :

LQ150X1LG51 LCD Panel FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel LQ150X1LG51 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order LQ150X1LG51 ship?
A: The order are shipped within 1-2 working days after received the payment.
|
|

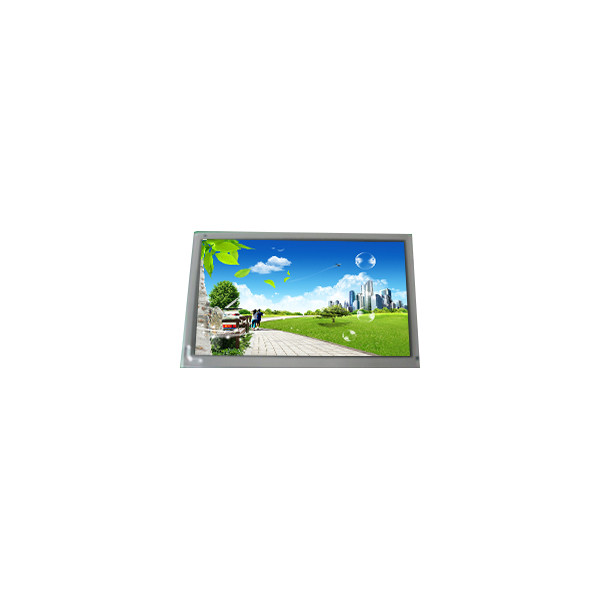

Original LQ150X1LG51 1024*768 LCD Screen with Industrial Images |
