Brand Name : Sharp
Model Number : LQ150X1LGN21
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : LQ150X1LGN21
Diagonal Size : 15.0"
Panel Type : a-Si TFT-LCD, LCM
Resolution : 1024(RGB)×768, XGA 85PPI
Pixel Format : RGB Vertical Stripe
Active Area : 304.128(W)×228.096(H) mm
Used for : Industrial
Refresh Rate : 60Hz
Original LQ150X1LGN21 15.0 inch LCD Screen with Industrial
LQ150X1LGN21 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ150X1LGN21 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | - |
| Luminance | - |
| Viewing Angle | 60/60/45/55 (Typ.)(CR≥10) |
| Good View at | 6 o'clock |
| Color Depth | 16.2M |
| Mass | - |
| Refresh Rate | 60Hz |
| Contrast Ratio | 350 : 1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 5/20 (Typ.)(Tr/Td) ms |
| Backlight | CCFL, No Driver |
| Used for | Industrial |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Original LQ150X1LGN21 15.0 inch LCD Screen with Industrial | |
LQ150X1LGN21 LCD Panel Shipping and Package :

LQ150X1LGN21 LCD Panel FAQ :
Q: When would you ship,IF I order LQ150X1LGN21 now?
A: The order are shipped within 1-2 working days after received the payment.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
|
|

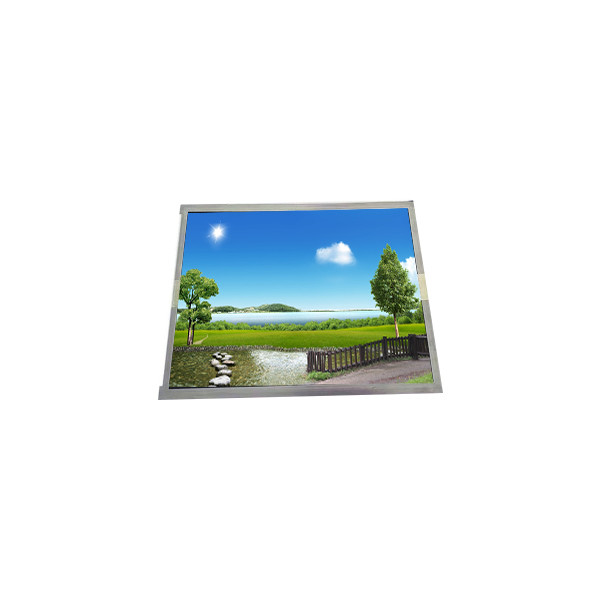

Original LQ150X1LGN21 15.0 inch LCD Screen with Industrial Images |
