Brand Name : Sharp
Model Number : LQ185K1LGN1
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : LQ185K1LGN1
Diagonal Size : 18.5"
Panel Type : a-Si TFT-LCD, LCM
Resolution : 1366(RGB)×768, WXGA 84PPI
Pixel Format : RGB Vertical Stripe
Active Area : 409.8(W)×230.4(H) mm
Designed For : Desktop Monitor、Industrial
Frame Rate : 60Hz
LQ185K1LGN1 18.5 inch 1366*768 TFT LCD Screen FOR Industrial
LQ185K1LGN1 LCD Panel Product details :
| Brand | Sharp |
| Model P/N | LQ185K1LGN1 |
| Diagonal Size | 18.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 84PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 409.8(W)×230.4(H) mm |
| Bezel Opening | 413.6(W)×234.2(H) mm |
| Outline(mm) | 430.37 × 254.6× 10.3 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Response | 1.5/3.5 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M |
| Backlight | 13S3P×2CNWLED, 30K hours, No Driver |
| Mass | 1.80Kgs (Max.) |
| Used for | Desktop Monitor,Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit), 30 pinsConnector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LQ185K1LGN1 18.5 inch 1366*768 TFT LCD Screen FOR Industrial | |
LQ185K1LGN1 LCD Panel Shipping and Package :

LQ185K1LGN1 LCD Panel FAQ :
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: When would you ship,IF I order LQ185K1LGN1 now?
A: The order are shipped within 1-2 working days after received the payment.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
|
|

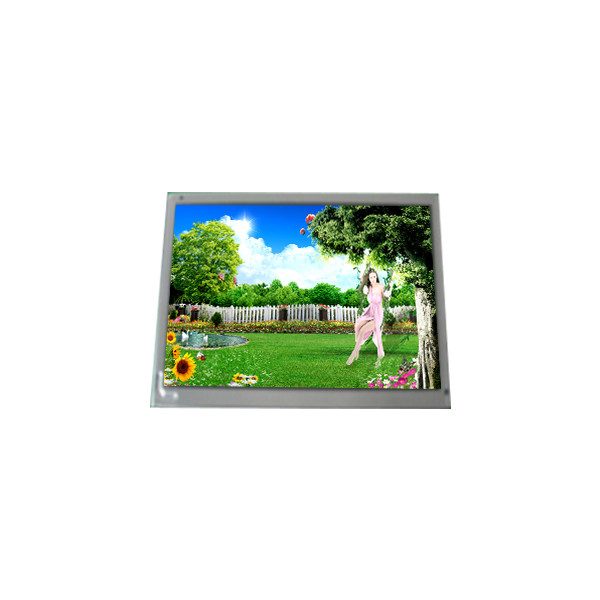

LQ185K1LGN1 18.5 inch 1366*768 TFT LCD Screen FOR Industrial Images |
