Brand Name : BOE
Model Number : GV220QHB-N90
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union, Western Union, MoneyGram
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : GV220QHB-N90
Diagonal Size : 22.0"
Panel Type : a-Si TFT-LCD, CELL, FOB
Resolution : 2560(RGB)×1440, Quad-HD 136PPI
Pixel Format : RGB Vertical Stripe
Active Area : 475.392(W)×267.408(H) mm
Frame Rate : 60Hz
Designed For : Industrial
2560*1440 22.0 inch GV220QHB-N90 LVDS 16.7M 100%sRGB LCD Screen
GV220QHB-N90 LCD Panel Product details :
| Brand | BOE |
| Model P/N | GV220QHB-N90 |
| Diagonal Size | 22.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 2560(RGB)×1440, Quad-HD 136PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 475.392(W)×267.408(H) mm |
| Bezel Opening | - |
| Outline Dim. | 483.464(H)×278.676(V)×1.24(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Plate Thickness | 0.40+0.50 mm |
| Transmittance | - |
| Support Color | 16.7M 100%sRGB |
| Light Source | No B/L |
| Weight | TBD |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (4 ch, 8-bit), 71 pinsConnector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 2560*1440 22.0 inch GV220QHB-N90 LVDS 16.7M 100%sRGB LCD Screen | |
GV220QHB-N90 LCD Panel Shipping and Package :

GV220QHB-N90 LCD Panel FAQ :
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .
Q: Do you accept the GV220QHB-N90 sample order?
A: Yes , sample order is welcome.
Q: How to order if I don’t know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
|
|

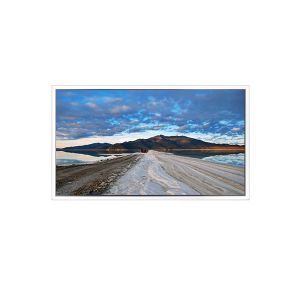

2560*1440 22.0 inch GV220QHB-N90 LVDS 16.7M 100%sRGB LCD Screen Images |
