Brand Name : Kyocera
Model Number : KCG062HVLAK-G000
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : KCG062HVLAK-G000
Diagonal Size : 6.2"
Panel Type : CSTN-LCD, LCM
Resolution : 640(RGB)×240, HVGA 109PPI
Pixel Format : RGB Vertical Stripe
Active Area : 147.84(W)×55.44(H) mm
Luminance : 200 cd/m² (Typ.)
Used for : Industrial
KCG062HVLAK-G000 6.2 inch 640*240 LCD Display Panel
KCG062HVLAK-G000 LCD Panel Product details :
| Brand | Kyocera |
| Model P/N | KCG062HVLAK-G000 |
| Diagonal Size | 6.2" |
| Panel Type | CSTN-LCD, LCM |
| Resolution | 640(RGB)×240, HVGA 109PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 147.84(W)×55.44(H) mm |
| Bezel Opening | 152.4(W)×60.0(H) mm |
| Outline Dim. | 174.2(H)×73.4(V)×12.7(D) mm |
| Treatment | Glare (Haze 0%) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 30:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 320/170 (Typ.)(Tr/Td) |
| Viewing Angle | 50/50/30/20 (Typ.)(CR≥2) |
| Operating Mode | STN, Normally Black, Transmissive |
| Support Color | Color 31%NTSC |
| Light Source | WLED [4 strings], 14K hours, W/O Driver |
| Weight | TBD |
| Designed For | Industrial |
| Frame Rate | 75Hz |
| Touch Panel | Without |
| Interface Type | Parallel Data (1ch, 8-bit), 20 pinsConnector |
| Power Supply | 3.3/5.0V (Typ.)(VDD) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| KCG062HVLAK-G000 6.2 inch 640*240 LCD Display Panel | |
KCG062HVLAK-G000 LCD Panel Shipping and Package :

KCG062HVLAK-G000 LCD Panel FAQ :
Q: What happen if the lcd panel KCG062HVLAK-G000 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order KCG062HVLAK-G000 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
|
|

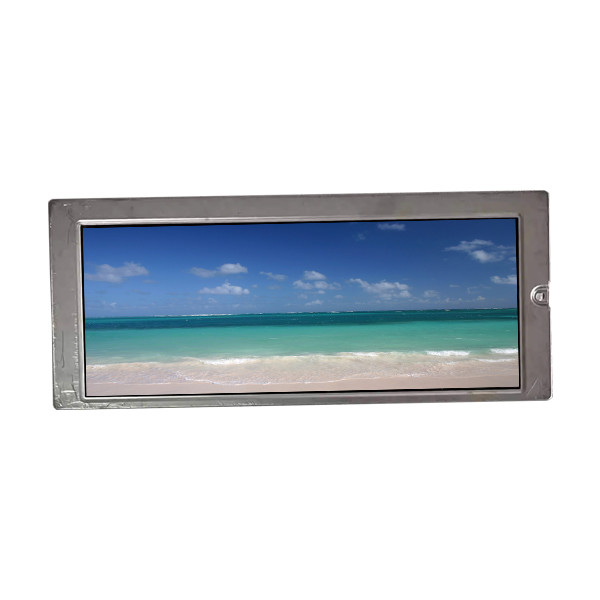

KCG062HVLAK-G000 6.2 inch 640*240 LCD Display Panel Images |
